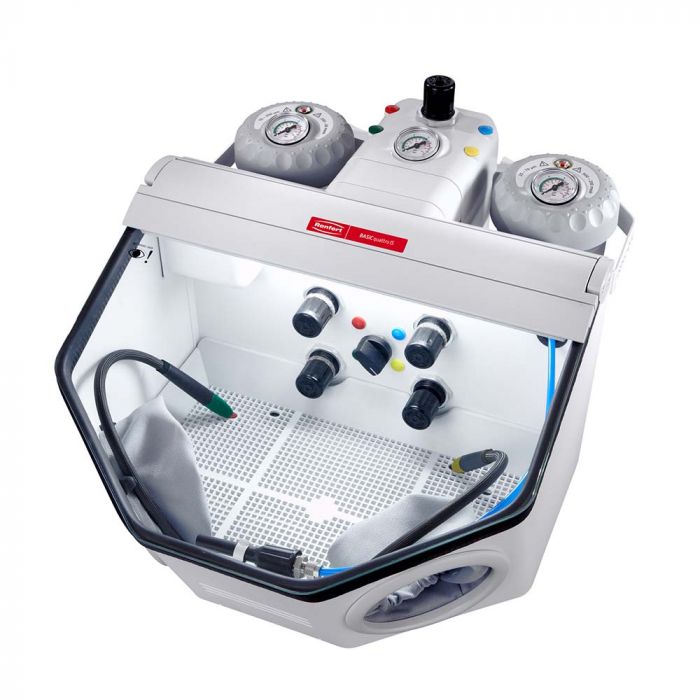

Renfert - Basic Quattro IS Fine Sandblasting Unit - 2 Blasting Tanks - (220-240 V) - (1 pc)

Renfert

Basic Quattro IS

Fine Sandblasting Unit

2 Blasting Tanks

220-240 V

1 pc

Professional fine sandblasting unit with 2-4 blasting tanks and the „IS“ (= Immediate Stop) technology for controlled sandblasting without an after-flow of sandblasting material.

Advantages:

     • Saves up to 80% sandblasting material thanks to the air-sand mixture and the integrated "IS" immediate stop technology.

     • Enables pin-point precision while working, for example when sandblasting grooves or devesting intricate items.

     • Quick and safe operation with the help of individual pressure adjustment and indicator for each tank.

Details:

     • Large sandblasting chamber (20 l) allows maximum freedom of movement.

     • Easy, tool-free tank extension via the quick-coupling and color-coded system.

     • Precise sandblasting due to excellent illumination of the blasting chamber with LED technology.

     • Good, long-lasting visibility of the objects through silicone-coated glass panel (10x longer service life).

Scope of delivery:

     • 1 x 25 - 70 µm

     • 1 x 70 - 250 µm

     • Incl. 2 nozzles 0.8 mm / 1.2 mm

Technical data:

     • Permissible mains voltage: 220–240 V

     • Permissible mains frequency: 50/60 Hz

     • Working pressure: 1-6 bar / 14.5-87 psi

     • Max. connection pressure: 6-8 bar / 87-116 psi

     • Air consumption: 98 l/min (6 bar) / 3.46 cfm (87 psi)

     • Intensity of lighting: 4800 lx

     • Lamp power: 16 W

     • Dimensions (W x H x D): 395 x 320 x 610 mm - 15.6 x 12.6 x 24.0 "

     • Tank capacity: 1000 ml / 34 fl.oz.

     • Number of tanks: 2-4

     • Blasting chamber volume: 20 l / 5.3 gal

     • Weight (empty - 2 tanks): ~11.5 kg - ~25.4 lbs
