Candulor - Articulator CA 3.0 Large - (1 pc)

Candulor

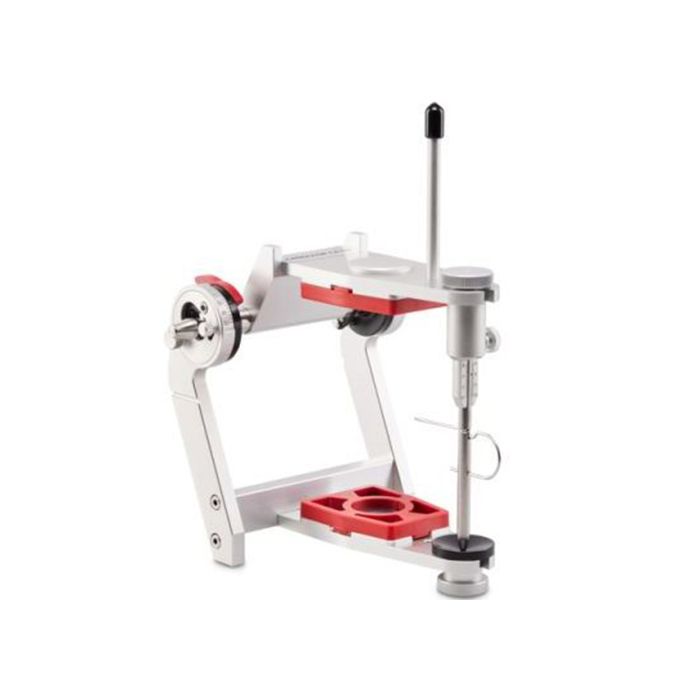

Articulator CA 3.0 Large

Articulator with adapted construction height.

Due to the higher overall construction height of 126 mm, the Articulator CA 3.0 LARGE can be synchronized with the Artex® articulator from Amann Girrbach.

Advantages

     • Same construction height as Artex® articulators of the Carbon series

     • Synchronization of several articulators possible

     • The double cone simulates the shape of the joint head

     • Incorporated magnet

     • Natural Bennet movement possible

Technical data

     • Height: 160 mm

     • Width: 145 mm

     • Weight: 735 g

     • Inner construction height: 126 mm

     • Depth: 160 mm

     • Bonwill triangle: 110 mm

     • Balkwill angle: 25°

     • Retrusion track: 1.5 mm

     • Immediate side-shift stop: 0 - 2.5 mm fix

     • Angle of jaw track adjustable between 0° - 60°

     • Incisal plate: 15°

     • Material: anodized aluminum
