Erkodent - Erkoform 3D Motion - (1 pc)

Erkodent

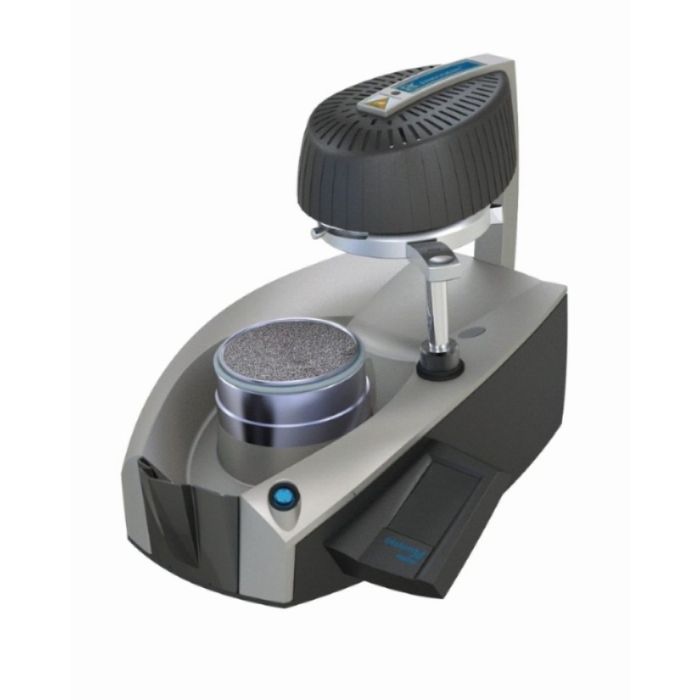

Erkoform 3D Motion

1 pc

Thermoforming unit with automated thermoforming process.
A large volume reserve vacuum is being held to allow a sudden forming. A sensor for touchless temperature measurement
ensures the accurate temperature of the material for the thermoforming regardless of the ambient temperature. The unit is equipped with a medium-wave infrared heating, which doesn’t need preheating time. The medium-wave allows for the
materials to heat up not only on the surface but also in-depth.
The result is a less stressed splint. The Occluform-3 can be installed (accessory).

Usage:

     • Program the foil, insert foil, start the heating process, place the model now at the latest, everything else will be done by the Erkoform-3d motion!
     • No compressed air supply required, plug and play.
     • No preheating time needed.
     • Touchless temperature sensor to exactly determine the actual temperature (patented) of the thermoforming material.
     • Prior to the thermoforming process built up vacuum with sudden forming.
     • Vertical pre-stretching and fitting for even foil thicknesses.
     • To position the foil, with foil thicknesses of 0 to 5.5 mm, the unit can be operated conveniently with one hand.
     • Easily accessible model during heating period.
     • Acoustic and visual signal (suitable for people with impaired hearing).

Technical Specification:

     • H 31,5 / W 35 / D 37 cm
     • Weight 13,9 kg
     • Foil diameter 120 mm
     • Foil thickness 0 - 5.5 mm
     • ~220 - 240 (110 - 120) (100) volts, 50 - 60 hertz
     • Power: 340 watt
     • Max. vacuum 0.8 bar
     • Noise level < 60 dB(A)
