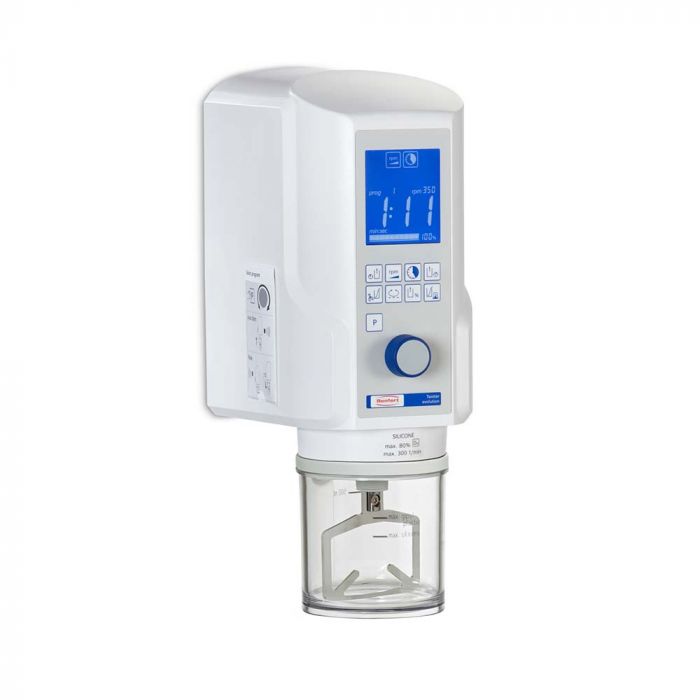

Renfert - Twister Evolution - Vacuum Mixing Unit (220-240 V) - (1 pc)

Renfert

Twister Evolution

Vacuum Mixing Unit

220-240 V

1 pc

High speed, vacuum mixing unit, diaphragm pump for the vacuum and eight programmable mixing functions.

Advantages:

     • Reliable processing of large amounts due to high speed.

     • 100 programs available via a large, highly luminous display.

     • Reduction of bubbles thanks to a vacuum that can be regulated in increments between 70% and 100%.

Details:

     • Can be used flexibly for plaster and investment materials, duplicating materials and alginate impression materials.

Scope of delivery:

     • incl. 500 ml bowl

     • mixing paddle

Technical data:

     • Permissible mains voltage: 230–240 V

     • Permissible mains frequency: 50/60 Hz

     • Power consumption: 180 W

     • Vacuum pump capacity: 16 l/min - 0.56 cfm

     • Max. vacuum: ≈-890 mbar - ≈-12.9 psi

     • Bowl pressure abs.: ≈80 mbar - ≈1.16 psi

     • Vacuum reduction: 70–100 %

     • Rotational speed: 100–450 rpm

     • Dimensions (W x H x D) (wall unit): 152 x 285 x 235 mm - 6.0 x 11.2 x 9.3"

     • Dimensions (W x H x D) (with stand): 230 x 640 x 295 mm - 9.0 x 25.2 x 11.6"

     • Weight (without bowl): ~5,2 kg - ~11.5 lbs

Expert tip:

Mixing bowls contaminated with stubborn plaster residue can be effortlessly cleaned: simply add GO 2011 speed to the mixing bowl and allow to take effect according to the amount of plaster. The immediately activated bubble formation indicates the beginning of the cleaning process. Rinse the bowl briefly under water after cleaning with GO 2011 speed. Finished!
