Harnisch & Rieth - D-AB 240 Wax Extraction Unit - (1 pc)

Harnisch & Rieth

D-AB 240

Wax Extraction Unit

1 pc

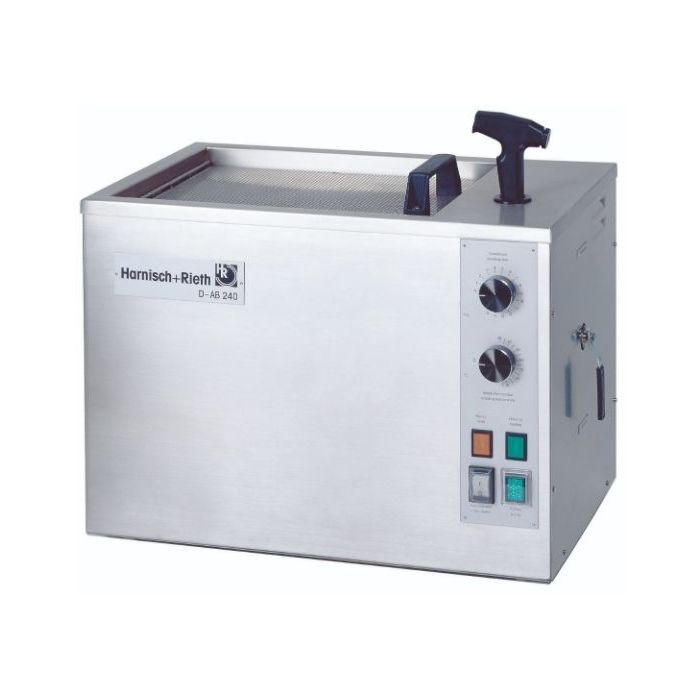

These units embody the latest findings and specifications for dental laboratories. They are technically sophisticated and of the highest quality. The exclusive use of proven and reliable components guarantees problem-free and efficient working, even in the harshest conditions.
The housing of the D-AB 240 wax extraction unit is made entirely of acid-resistant, rustproof steel plate. The unit is extremely maintenance and user-friendly. It accommodates six cuvette baskets of special chemically and thermally resistant plastic, suitable for all conventional cuvettes. Cuvette baskets are also available for the Ivocap system

Nozzles

Six highly effective nozzles ensure optimum spraying of the cuvette halves. The powerful 2,300 W heating system rapidly heats the water content of approximately 14 litres to the wax extraction temperature.

Flap lid

The perforated flap lid is recessed. Smaller parts can be de-waxed on it without problem using the integrated hand spray.
An easy-to-fit spray guard can be supplied on request.

Content:

    • 1 x measuring cup

    • 1 x 250 ml wax solvent

    • 6 x cuvette holders

    • 1 x operating instructions

Dimensions:

    • Height: 425 mm

    • Width: 600 mm

    • Depth: 420 mm

    • Weight: 35,5 kg

Technical Characteristics:

     • Voltage: 230 V, 50 Hz

     • Power consumption: heating system 2,3 kW / pump 0,19 kW

     • Capacity: 6 cuvette halves (included)

     • Housing: acid-resistant, rustproof stainless steel housing

Accessories:

     • Wax solvent: ref.: 15051
