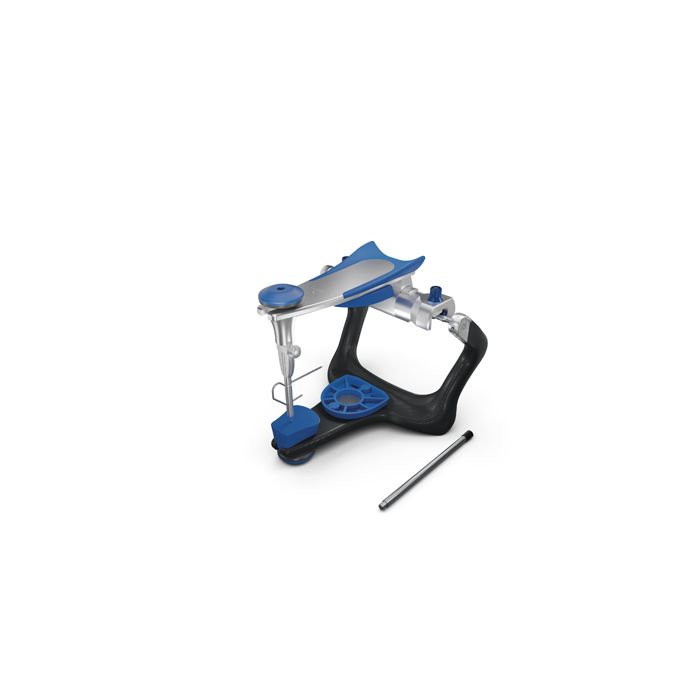

Amann Girrbach - Artex - Typ CP/CPR

Sur Commande
En stock
SKU:
218750
1 190,00 €

Amann Girrbach

Artex

Typ CP/CPR

Artex articulators in Arcon design based on the human anatomy. The condylar balls are therefore in the lower member of the articulator and condylar guidance surface in the upper member. The condylar guidance elements can be adjusted using individual positioning registrations.

     • Semi-adjustable Arcon articulator with 3 non-tip working positions

     • High-precision and robust centric quick lock via mechanically guided semi axis

     • Arbitrary pins for direct transfer with the Artex facebow

     • Adjustable inclination of the condyle track inclination from -20° to +60°

     • Distraction permitting release of compressed mandibular joints from 0 to 3 mm

     • Arcon clip prevents separation of upper and lower articulator parts while centric is open

     • Bennett angle adjustable from -5° to +30°

     • Infinitely variable retrusion, can be set from 0 to 2 mm

Technical data:

     • SCI (Sagittale condylar inclination): -20° to +60°

     • Bennett-angle: -5° to +30°

     • Protrusion: -

     • Retrusion: 0 to 2 mm

     • ISS (Immediate Sideshift): -

     • Distraction: 0 to 3 mm

     • Centric Design: Centric click

     • Upper and lower articulator arms prevented from coming apart inadvertently in open centric by: Arcon-Clip

     • Arbitrary pins for direct transfer wth Artex facebow : Yes
