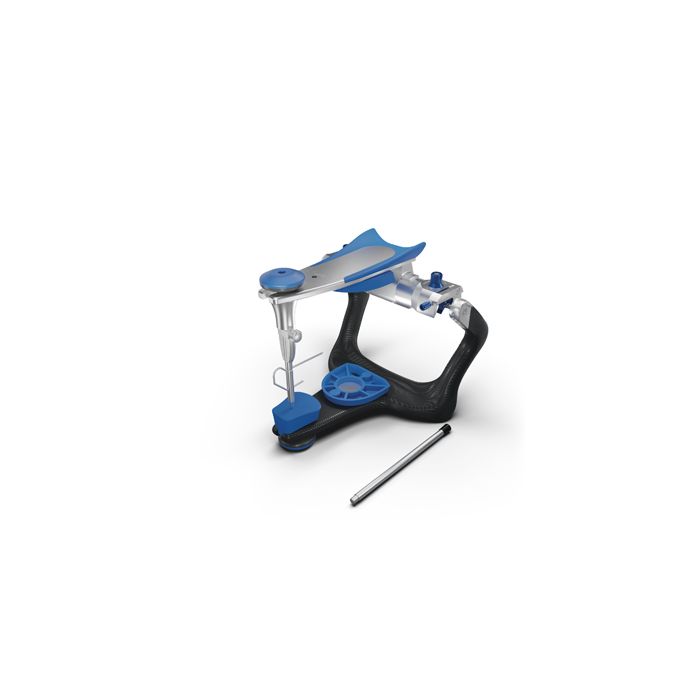

Amann Girrbach - Artex - Typ CR

Amann Girrbach

Artex

Typ CR

Artex articulators in Arcon design based on the human anatomy. The condylar balls are therefore in the lower member of the articulator and condylar guidance surface in the upper member. The condylar guidance elements can be adjusted using individual positioning registrations.

     • Provides comprehensive adjustment possibilities to reproduce the patient’s clearance and movement dynamics

     • Fully adjustable Artex Carbon articulator offering the following additional functions:

     • Variable sideshift function for transversal clearance, adjustable from 0 to 1.5 mm (for each side)

     • Variable protrusion, adjustable from 0 to 6 mm

     • Variable retrusion, adjustable from 0 to 2 mm

     • Distraction permitting release of compressed mandibular joints from 0 to 3 mm

     • Ideal for model analysis, splint manufacture and correction

     • Adjustable inclination of the condyle track inclination from -20° to +60°

     • Bennett angle adjustable from -5° to +30°

Technical data:

     • SCI (Sagittale condylar inclination): -20° to +60°

     • Bennett-angle: -5° to +30°

     • Protrusion: 0 to 6 mm

     • Retrusion: 0 to 2 mm

     • ISS (Immediate Sideshift): 0 to 0.5 mm (per side)

     • Distraction: 0 to 3 mm

     • Centric Design: Centric lever for semi-axis

     • Upper and lower articulator arms prevented from coming apart inadvertently in open centric by: Arcon-Clip

     • Arbitrary pins for direct transfer wth Artex facebow : Yes
