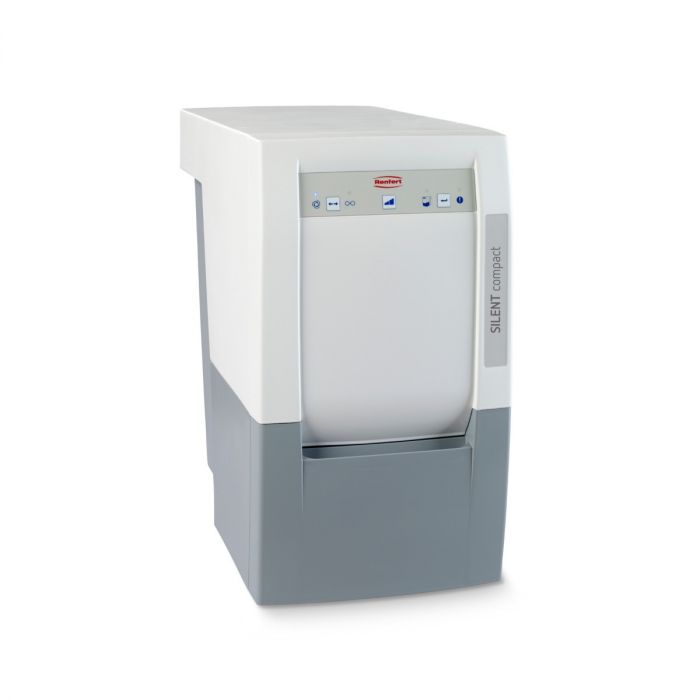

Renfert - Silent Compact - Single Workbench Extraction (220-240 V) - (1 pc)

Renfert

Silent Compact

Single Workbench Extraction

220-240 V

1 pc

Compact, dustbag-free suction with automatic filter cleaning and durable collector motor.

Advantages:

     • No follow-up costs due to bag-free dust collection.

     • Low operating noise of max. 55 dB(A).

     • 3x longer service life in comparison to conventional collector motors (1000 operating hours guaranteed).

Details:

     • Comfortable operation of the switch-on function through key combination.

     • Working without interruption due to uncomplicated motor change within minutes.

Scope of delivery:

     • 2 m suction hose

     • 2 mufflers

Technical data:

     • Permissible mains voltage: 220–240 V

     • Permissible mains frequency: 50/60 Hz

     • Nominal voltage: 230 V

     • Suction turbine power: 490 W (230 V)

     • Volume flow (max.): 2500 l/min (230 V) - 1.47 ft³/s (230 V)

     • Max. depression: 219 hPa - 3.2 psi

     • Motor technology: Collector

     • Filter technology: Bag- free

     • Filter quality: Class M according to EN 60335-2-69

     • Max. permitted connected load of the plug-in socket: 1350 W (230 V)

     • Mains input fuse: 8 A

     • Number of suction hoses: 1

     • Sound pressure level (LpA) (at max. volume flow): 55 dB(A)

     • Weight (empty): ~13,2 kg - ~29.1 lbs

     • Dimensions (W x H x D): 245 x 440 x 500 mm - 9.6 x 17.3 x 19.7"

     • Ø suction fittings interior: 35 mm - 1.38 "

     • Ø suction fittings exterior: 40 mm - 1.57 "

     • Fill level dust collector: ~2,6 l - ~0.69 gal

Exploded view
